Structure library

General Information

Soil Type	Luvisol
Classification	WRB

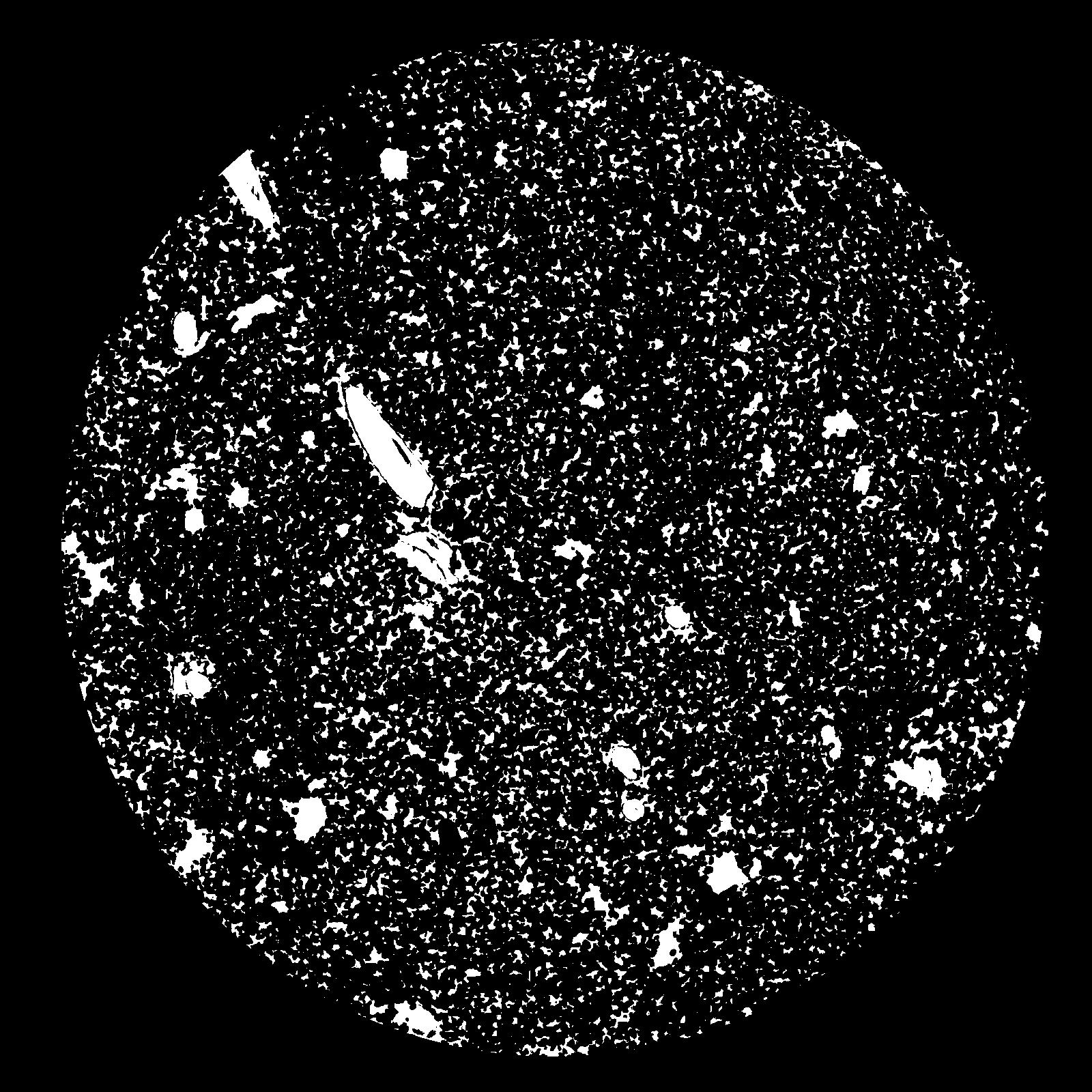

XY Plane

XY Plane Grey

treated wastewater irrigated, sample taken below the dripper
Bulk density	1.28
org. Carbon	0.09
Publication
Binary File Download

Results

Porosity	Surface	Mean Curvature	Euler	MeanPoreSize	Gamma	PoreDist
0.32512838	11.514255202	20.030150149	45.603413357	0.177567619866	0.820139097056	0.054220639

Opening size	Volume	Surface	MeanCurvature	Euler number
0.038	0.32512838	11.514255202	20.030150149	45.603413357
0.0475	0.301075525	9.396369563	14.05555907	24.655500345
0.057	0.279165649	8.046177023	10.946943298	17.899978444
0.0665	0.262180236	7.157365076	9.345341083	20.729877911
0.076	0.252709796	6.720109009	9.010447664	29.379263992
0.0855	0.203729186	4.612049169	5.318737883	16.000170554
0.095	0.183821015	3.872386456	4.26202102	13.513124101
0.114	0.15995826	3.027710628	3.167486071	10.602192053
0.133	0.123071645	1.864080297	1.552268315	4.559122875
0.152	0.10647294	1.41577479	1.016990553	2.663277459
0.171	0.088678356	0.992653851	0.550916868	1.181015208
0.19	0.082213332	0.85866068	0.429204283	0.768323599
0.209	0.072199363	0.679495341	0.28345679	0.402884487
0.228	0.068050669	0.610958304	0.237883015	0.255678599
0.247	0.062551476	0.535816326	0.195455582	0.174943202
0.266	0.060114168	0.502961868	0.179657748	0.131256933
0.285	0.055321285	0.448458842	0.156028514	0.110751133
0.38	0.038524374	0.281743066	0.095611129	0.078655098
0.475	0.023302775	0.147191278	0.044619064	0.036454756
0.57	0.013817447	0.076721583	0.021438586	0.016147079
0.665	0.007780962	0.035001146	0.007854197	0.006339957
0.855	0.003691992	0.012461271	0.002012418	0.001188742
1.045	0.002751469	0.00881943	0.00135487	0.000594371
1.235	0.001980465	0.006657096	0.001088841	0.000594371
1.425	0.000462592	0.001701318	0.000328936	0.000198124

CSV Download
