General Information
Internal Identifier leuther
| Soil Type | Luvisol |
|---|
| Classification | WRB |
|---|
|
| Location | Rehovot |
|---|
| Latitude | 31.900 |
|---|
| Longitude | 34.850 |
|---|
|
| Landuse | orchard |
|---|
| Tillage | No tillage |
|---|
| Crop | grapefruit |
|---|
|
| Sampling Depth | 5.0 |
|---|
| Sample Height | 3.0 |
|---|
| Sampling Date | Feb. 15, 2016 |
|---|
| Voxel size | 0.019 |
|---|
| Pores white? | True |
|---|
|

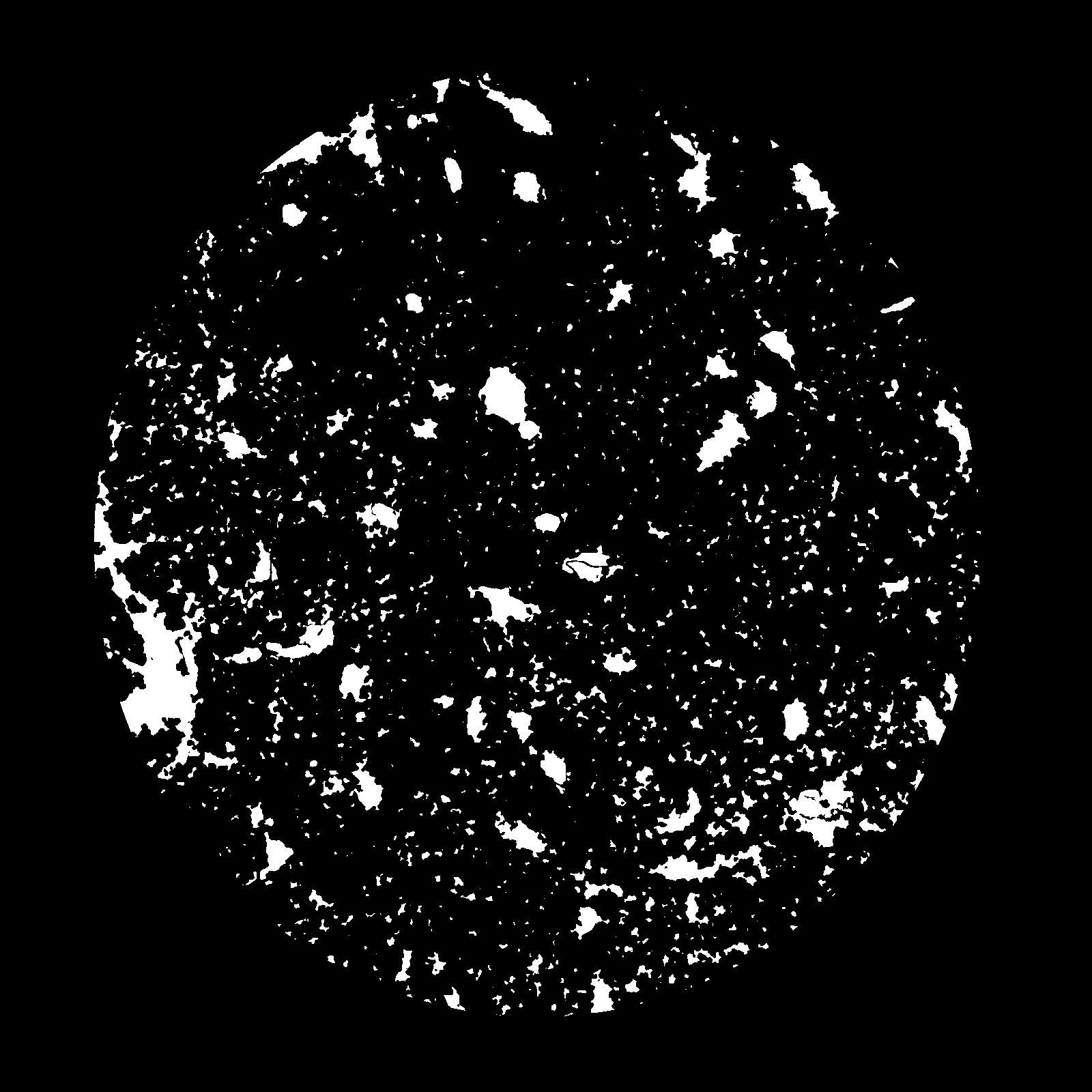

| XY Plane |
|
|---|
|
| XY Plane Grey |
|
|---|
|
| Texture | loamy sand |
|---|
| Sand | 86.0 |
|---|
| Silt | 5.0 |
|---|
| Clay | 9.0 |
|---|
|
|
Results
| Porosity | Surface | Mean Curvature | Euler | MeanPoreSize | Gamma | PoreDist |
| 0.349218797 | 7.917315056 | 8.456291134 | 8.923486799 | 0.303887751062 | 0.75390371127 | 0.076978973 |
| Opening size | Volume | Surface | MeanCurvature | Euler number |
|---|
| 0.038 | 0.349218797 | 7.917315056 | 8.456291134 | 8.923486799 |
| 0.0475 | 0.342383627 | 7.344886593 | 7.620797502 | 10.256440556 |
| 0.057 | 0.336539184 | 7.025444444 | 7.084832553 | 8.619278367 |
| 0.0665 | 0.329935708 | 6.709826974 | 6.646105254 | 10.462047578 |
| 0.076 | 0.325488726 | 6.513378471 | 6.557641561 | 15.024227108 |
| 0.0855 | 0.294442881 | 5.287453791 | 4.783325291 | 11.636978666 |
| 0.095 | 0.278966174 | 4.744230471 | 4.105131363 | 10.525019907 |
| 0.114 | 0.257227937 | 4.006651037 | 3.271869355 | 8.234697357 |
| 0.133 | 0.220122039 | 2.925050482 | 1.997175341 | 4.402736433 |
| 0.152 | 0.199670319 | 2.411341788 | 1.485505113 | 2.939339995 |
| 0.171 | 0.17420513 | 1.854222477 | 0.969498157 | 1.821581153 |
| 0.19 | 0.163323101 | 1.638382364 | 0.797599029 | 1.217780681 |
| 0.209 | 0.145032063 | 1.327590742 | 0.578080337 | 0.890135179 |
| 0.228 | 0.136296408 | 1.181265116 | 0.482307602 | 0.573734736 |
| 0.247 | 0.124900926 | 1.023335943 | 0.393577804 | 0.442108363 |
| 0.266 | 0.119738414 | 0.950581617 | 0.355795892 | 0.321371943 |
| 0.285 | 0.109661048 | 0.828162948 | 0.295704559 | 0.270946732 |
| 0.38 | 0.078195689 | 0.500564898 | 0.1618346 | 0.141924479 |
| 0.475 | 0.050840364 | 0.260812211 | 0.072934023 | 0.069837733 |
| 0.57 | 0.035073721 | 0.141055684 | 0.031308866 | 0.023081963 |
| 0.665 | 0.027117144 | 0.089639503 | 0.015583184 | 0.008996047 |
| 0.855 | 0.019040272 | 0.047572048 | 0.005468344 | 0.001420428 |
| 1.045 | 0.016114085 | 0.037404236 | 0.004170817 | 0.001657167 |
| 1.235 | 0.014069515 | 0.030876694 | 0.003224313 | 0.001420428 |
| 1.425 | 0.011711812 | 0.024291112 | 0.002346969 | 0.000591845 |
| 1.615 | 0.009795545 | 0.01992259 | 0.001849074 | 0.000355107 |
| 1.805 | 0.008120137 | 0.017270734 | 0.001861433 | 0.000591845 |
| 1.995 | 0.006480855 | 0.013871978 | 0.001502292 | 0.000473476 |
| 2.185 | 0.0030366 | 0.00648014 | 0.000714425 | 0.000236738 |
Reference: An open Soil Structure Library based on X-ray CT data
